Shell Size Guide

Shell diameter is the single most important variable in display planning. It determines burst altitude, visual coverage, safety clearances, and overall production scale. This reference provides the technical context needed for informed event planning.

What Shell Size Refers To

Shell size is measured by the outer diameter of the spherical or cylindrical projectile, expressed in inches. A 6-inch shell, for example, has a casing diameter of approximately six inches before launch. This measurement directly correlates with the volume of pyrotechnic composition inside the shell, which in turn determines burst altitude, diameter, and the intensity of the visual effect.

Larger shells travel higher, produce wider bursts, and require greater separation from spectators. The relationship between size and effect is not linear — a shell twice the diameter contains roughly eight times the volume of material, resulting in significantly greater visual impact and correspondingly larger safety requirements.

Shell Size Reference

Approximate specifications by shell diameter. Actual performance varies based on manufacturer, composition, and atmospheric conditions.

Diameter	Burst Height (ft)	Burst Width (ft)	Typical Applications	Min Viewing Distance (ft)
2.5"	150-200	75-100	Small Outdoor Venues, Limited effects.	100-200
3"	200-280	100-150	Common Size, used in most displays.	200-300
4"	250-350	150-200	Common Size, used in most displays.	280-400
5"	300-450	200-300	Large public events, festival-scale displays	350-500
6"	400-560	300-400	Major venue displays, high-visibility civic events	420-600
8"	500-700	400-550	Major venue displays, high-visibility civic events	560-800
10"	650-900	550-700	Signature aerial displays, waterfront productions	700-1000
12"	800-1100	700-900	Premier large-format displays requiring maximum visual coverage	840-1200

Matching Shell Size to Your Event

Selecting the right shell size is a function of site logistics, not preference alone. The following factors are evaluated during every planning engagement.

Venue Dimensions

The physical footprint of the site determines the maximum shell size that can be safely deployed. Most venues typically limit displays to 3–4 inch shells, while larger venues or waterfront sites can accommodate larger shells.

Spectator Distance

What determines what size shells can be used is the separation distance between the firing position and the nearest spectator. This measurement is mandated by fire code and directly influences which shells are appropriate for a given layout.

Environmental Context

Surrounding terrain, vegetation density, and proximity to sensitive habitats all factor into shell selection. Coastal, forested, and urban environments each require different approaches to fallout management.

Event Profile

The nature of the event shapes the display design. An intimate celebration calls for refined, smaller-shell choreography, while a civic or stadium event benefits from the scale and visibility of larger formats.

Safety and Site Considerations

Shell size selection is fundamentally a safety decision. Every display site is evaluated against established clearance standards, and shell sizes are determined by what the site can safely accommodate — not by aesthetic ambition.

Fallout Radius

Every shell produces debris after detonation. The fallout zone scales with shell diameter and must be calculated into site planning. Larger shells require proportionally larger exclusion areas downrange of the firing position.

Terrain & Elevation

Uneven terrain, hilltops, and depressed firing sites all affect burst altitude relative to spectators. Site surveys account for elevation differentials that can shift the effective clearance distance.

Atmospheric Conditions

Wind speed and direction at the time of display can redirect fallout patterns. Pre-event weather assessment is standard practice, and contingency plans address conditions that may require shell size reduction or display modification.

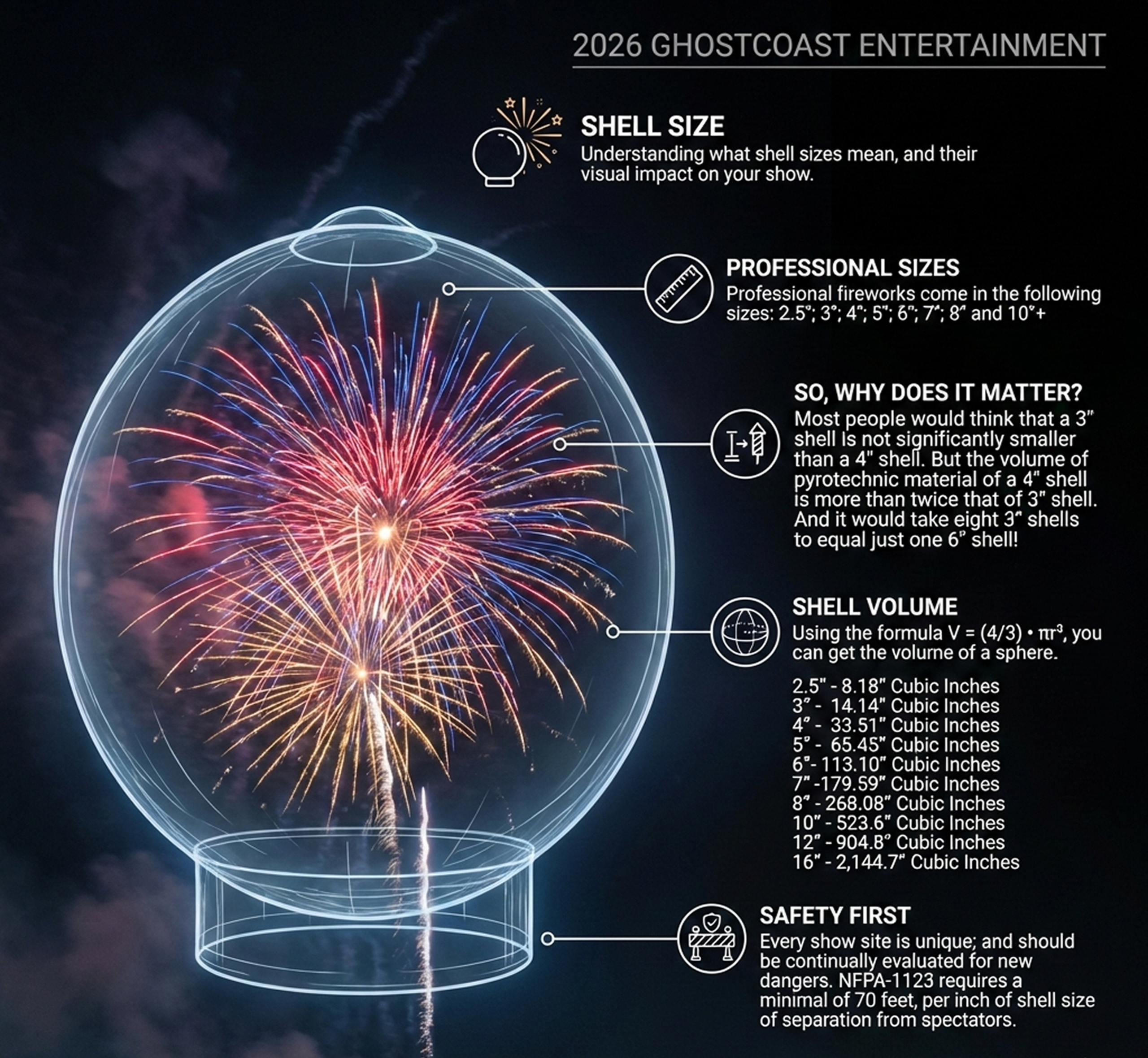

Visual Scale Reference

The diagram illustrates the relative volume differences between common shell sizes. Note how material volume — and therefore visual output — increases exponentially with diameter.
